QDD-400G-FR4-PO
Product Code:
QDD-400G-FR4-PO
UPC:
QDD-400G-FR4-PO
Shipping:
Calculated at Checkout
Platform:
Juniper
Data Rate:
400G QSFPDD
Optics Class:
400G QSFPDD FR4
Reach:
2km
Title:
QSFP56-DD-FR4
Description:

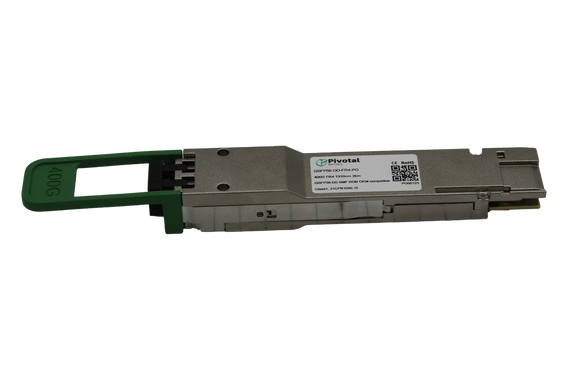

400G QSFP56-DD FR4 1271-1331nm SMF 2km Transceiver
Qty in Stock:
50
$960.00
QSFP56-DD, 1310nm, FR4 SMF 2km, 400G DDM, Juniper QDD-400G-FR Compatible
The Pivotal Optics line of Juniper Transceivers ensures complete compatibility and functionality with designated routers and switches, adhering strictly to MSA compliance standards. Each unit undergoes thorough environmental testing in its specific port and platform, meeting all performance requirements for wavelength, distance, density, and light performance. The QDD-400G-FR4-PO transceiver stands out with an exceptional limited lifetime warranty, surpassing Juniper's coverage for the same product.
Download Product Datasheet
QSFP56-DD, 1310nm, FR4 SMF 2km, 400G DDM, Juniper QDD-400G-FR Compatible
The Pivotal Optics line of Juniper Transceivers ensures complete compatibility and functionality with designated routers and switches, adhering strictly to MSA compliance standards. Each unit undergoes thorough environmental testing in its specific port and platform, meeting all performance requirements for wavelength, distance, density, and light performance. The QDD-400G-FR4-PO transceiver stands out with an exceptional limited lifetime warranty, surpassing Juniper's coverage for the same product.
Download Product Datasheet
Features
- Compliant with 400G-FR4 Technical
- Specification rev 2.0 (100G Lambda MSA)
- Compliant with QSFP-DD MSA HW with duplex LC connector
- Compliant with IEEE 802.3bs standard: 400GAUI-8 electrical interface
- Compliant with QSFP-DD CMIS Rev 4.0
- Maximum power consumption 10 W
- Operating Distance up to 2km
- Two wire serial Interface with digital diagnostic monitoring
- Complies with EU Directive 2011/65/EU (RoHS compliant), and Class 1 Laser
- Case operating temperature:
- Commercial: 0 ~ 70°C
Applications
- 400G Ethernet
- Data Center
